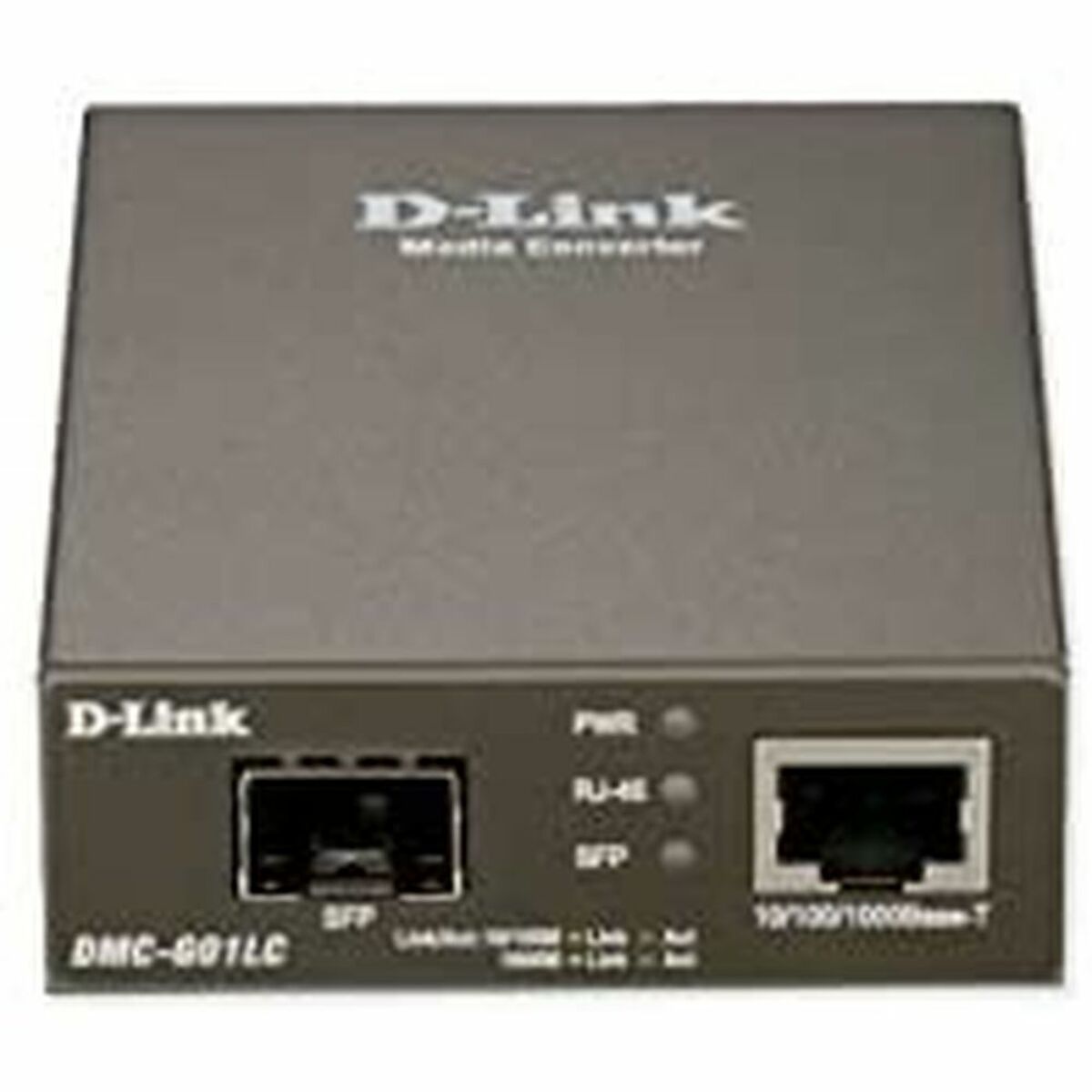

Multimode Media Converter D-Link DMC-G01LC

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Multimode Media Converter D-Link DMC-G01LC at an unbeatable price.

The DMC-G01LC from D-Link is a multimode media converter designed to provide a reliable, high-speed network connection in professional environments. This device enables efficient conversion between different network technologies thanks to its support for transfer speeds up to 1000 Mbit/s, compatible with IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x standards, ensuring outstanding versatility in Ethernet infrastructures. Its gray color and metal construction offer robustness and durability while facilitating integration into various setups. Connection is made via RJ45 ports for Ethernet LAN and an SFP fiber optic connector, ensuring stable, low-latency wired connectivity—ideal for enterprise networks requiring high bandwidth and uninterrupted transfer. This converter operates with a standard power supply of 5 V and 1 A output current, adapting to conventional 230-240 V input systems. It also features an exceptional mean time between failures (MTBF) of 506,711 hours, reflecting prolonged reliability and low maintenance. Its compact 70 mm size facilitates handling and rack or small-space mounting, while the implemented technology optimizes communication between fiber and copper devices, enhancing flexibility and reach in multimode networks. In short, this D-Link multimode converter offers a solid technical solution for network professionals seeking stability, compatibility, and speed in a device that easily integrates into advanced infrastructures.

• Type:
  • Wired
  • Fibre optic
  • Remote Control
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • Ethernet LAN
  • SFP
  • RJ45
• Power supply:
  • Electric Network
  • Wired
  • CC
• Colour: Grey
• Speed:
  • 1000 Mbit/s
  • 10/100/1000 Mbps
• Output voltage: 5 V
• Material: Metal
• Voltage: 5 V
• Interface: Gigabit Ethernet
• Characteristics: LED in operation indicator
• Amperage: 1 A
• Working range for humidity: 10 % - 90 %
• Data transfer: 1000 Mbit/s

D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line. SFP Optical Transceivers for Maximum Flexibility The fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps. 10/100/1000 Copper Speeds The copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps. Plug & Play The DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.

• Maximum data transfer rate: 1000 Mbit/s
• Networking standards: IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Auto MDI/MDI-X: Y
• Fiber optic connector: SFP
• Connectivity technology: Wired
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 1
• DC-in jack: Y
• Mean time between failures (MTBF): 506711 h
• Internal: N
• LED indicators: Y
• Product colour: Grey
• Safety: LVD, UL/cUL
• Certification: CE, FCC, VCCI, BSMI
• Input voltage: 230 - 240 V
• Output voltage: 5 V
• Output current: 1 A
• Width: 70 mm
• Depth: 95 mm
• Height: 25 mm
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -10 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Package width: 101 mm
• Package depth: 134 mm
• Package height: 95 mm
• Package weight: 358 g
• Shipping (inner) case length: 50.4 cm
• Shipping (inner) case width: 29.4 cm
• Shipping (inner) case height: 23.6 cm
• Shipping (inner) case net weight: 7.16 kg
• Products per shipping (inner) case: 20 pc(s)
• Pallet gross weight (air): 341.1 kg
• Master (outer) cases per pallet (air): 40 pc(s)
• Products per pallet (air): 800 pc(s)
• Pallet gross length: 110 cm
• Pallet gross width: 120 cm
• Pallet height (air): 131 cm
• Pallet gross weight (sea): 534.6 kg
• Master (outer) cases per pallet (sea): 64 pc(s)
• Products per pallet (sea): 1280 pc(s)
• Pallet height (sea): 2.02 m
• Shipping (inner) case gross weight: 8.04 kg
